Energy Saving Industrial Freeze Dryer Rubber Insulation Board Material

Name: Energy Saving Industrial Freeze Dryer Rubber Insulation Board Material
Brand: LEADTOP
Price: 85 USD

Buy cheap Energy Saving Industrial Freeze Dryer Rubber Insulation Board Material product

Brand Name : LEADTOP

Model Number : LTDG-10

Certification : CE certification

Place of Origin : China

MOQ : 1 set

Price : 85,000usd /set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 25 sets/month

Delivery Time : 35days

Packaging Details : wooden box

Model : LTDG-10

Original place : Zhejiang

Power （three-phase and five-wire system） : 380V/50HZ

Power consumption : 46kw

Cooling water qty : ≥15m3/h(T≤25℃,P=0.2-0.3Mpa)

Total weight : 3800kg

Contact Now

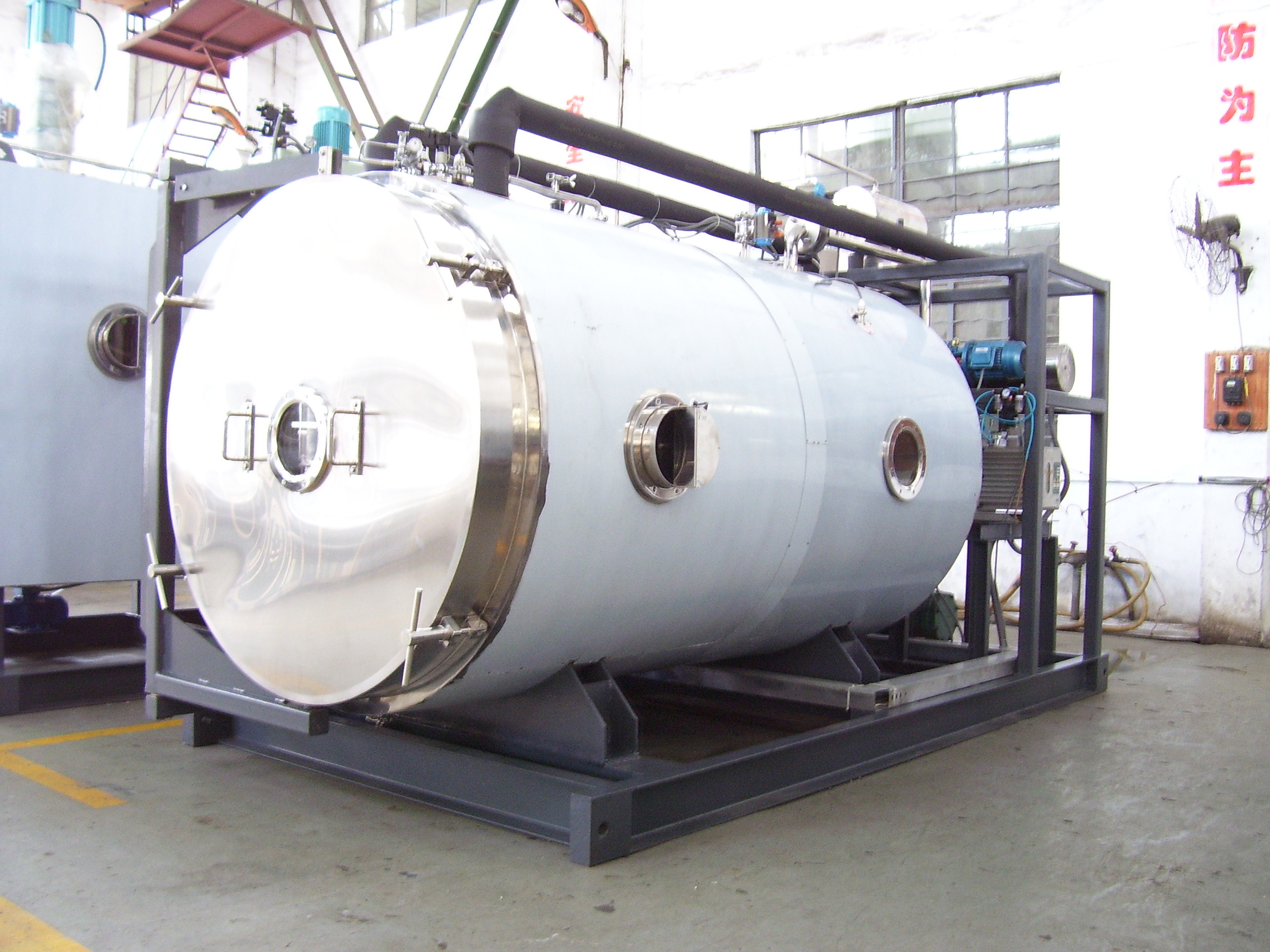

LTDG-10 Vacuum Freeze Dryer

Theory of freeze-drying

Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials

Products at solution stage are frozen through sublimation and desorption, then the solvent reduce to a certain extent, thereby preventing the formation of micro-organisms or chemical reaction between the solute and solvent that products can be preserved for a long time and maintained its nature.

Vacuum freeze-drying method is a liquid → solid → gaseous process. In freeze-drying process, "liquid bridge" between the solution particles has been frozen into "solid bridge". The relative position of particles has been fixed and does not exist surface tension on gas-liquid interface between the two particles. With the continuous distillation of solvent, "solid bridge" continuously decrease, but the the relative position between two particles will not longer change until the "solid bridge" completely disappear.

Finished Product: Dried Coconut; Dried Durian; Dried Kiwi

LTDG-10 Vacuum Freeze Dryer
	Product structure	Technical parameters	Remarks
Standard:GMP
※ Public distribution
	Power (three-phase and five-wire system)	380V/50HZ
	Power consumption	46kw
	Cooling water qty	≥15m³/h(T≤25℃,P=0.2-0.3Mpa)
	Whole volume Appearance size	Dry chamber and Condenser: D=φ1300mm L=2300mm L=5000mm W=2000mm H=2000mm	(According to design standard)
	Structure	Split
	Total weight	3800kg	(According to design standard)
※ Drying body
	Performance parameters
		Design and manufacturing standards	Vacuum vessel design standards
		Chamber design pressure	-0.1Mpa
		Chamber design temperature	90℃
		Chamber Vacuum leak rate	25×10^-3 Pa.m³/sec
	main components
	Chamber material	SUS304/δ5mm
	Geometry Box	Horizontal barrel type
	Lock method	Rotate and locking type by handle
	Direction of opening door	open right (the user can choose)
	Opening angle	>110°
	Door materials	SUS304
	Box external decoration	SUS304 SUS304
	The roughness of chamber and door	Ra≤0.6μm
	Insulation material	Rubber insulation board/δ70mm
	Door observation window	Φ200mm observation window at central portal	One piece
